3.2.11.2.6. TXT Conversion Export Module

3.2.11.2.6. TXT Conversion Export Module

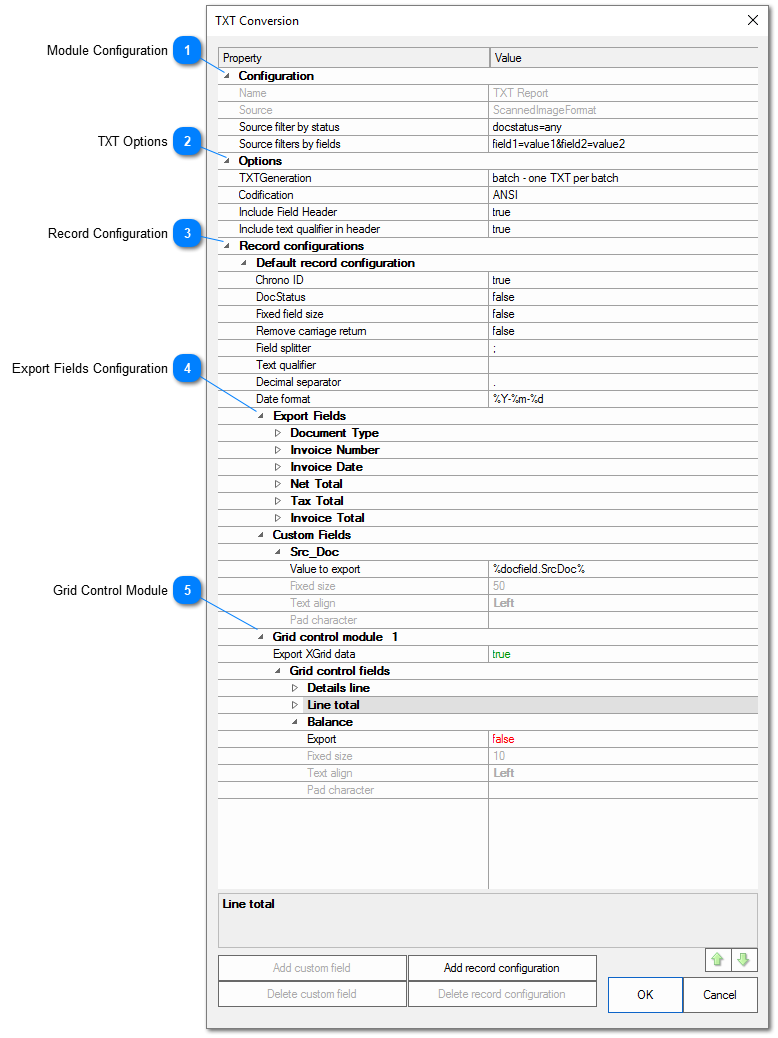

The TXT module will allow the users to export a comma separated or a fixed characters type of text file.

1

Module Configuration

1. Module Configuration
The module configuration will allow the user to set filters for the export. For instance only exporting documents that passed all validation rules or that have a specific value on a field.

2

TXT Options

2. TXT Options
The options section will allow the user to define a header for the file as well as txt codification and file generation.

3

Record Configuration

3. Record Configuration

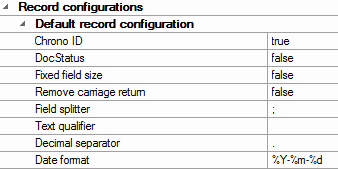

Using different record configurations it is possible to export different sections on the final TXT file depending on field value conditions. Fields can be omitted or revealed depending on the defined conditions. The field splitter and text qualifier fields can be used to match the expected field split separator and extra fields such as ChronoID (document number) and doc status can be added to each record.

4

Export Fields Configuration

4. Export Fields Configuration

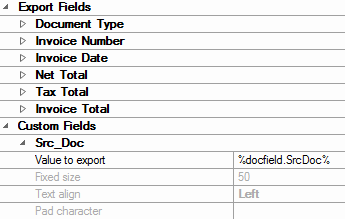

On the export fields configuration section the user can set the values that will be added to each field on the final txt file. System variables can be used on custom fields.

5

Grid Control Module

5. Grid Control Module
The grid control module section will allow the user to export line items captured by the Grid Modules on ChronoScan.
