4.6. Running ChronoScan Web Server through a Reverse Proxy (IIS)


You might need to install ChronoScan Web as an application on an existing IIS server, this article will help you configure IIS as a reverse proxy to run ChronoScan Web.

1 - Install ARR (Application Request Routing):


2 - Enable encoding on your IIS (the ARR needs it):

Double click on the URL Rewrite of your web site:


Click on View Server Variables:


And add HTTP_ACCEPT_ENCODING:

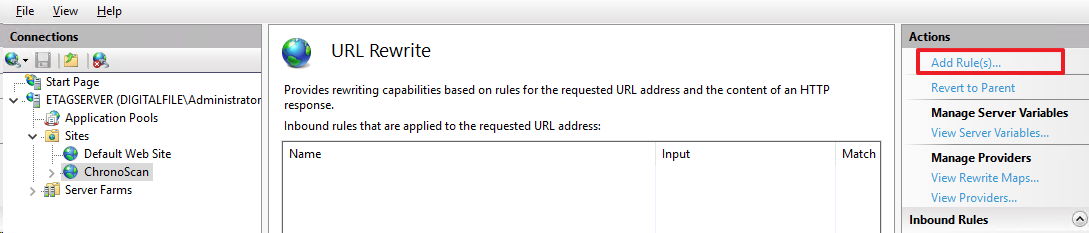

3 - Create a virtual directory (not app) on your IIS server and double click on it's URL rewrite module (wci is our selected name, you can use any name):

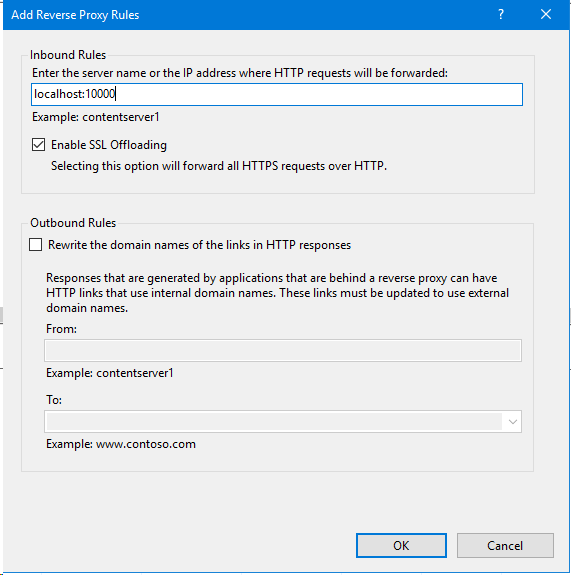

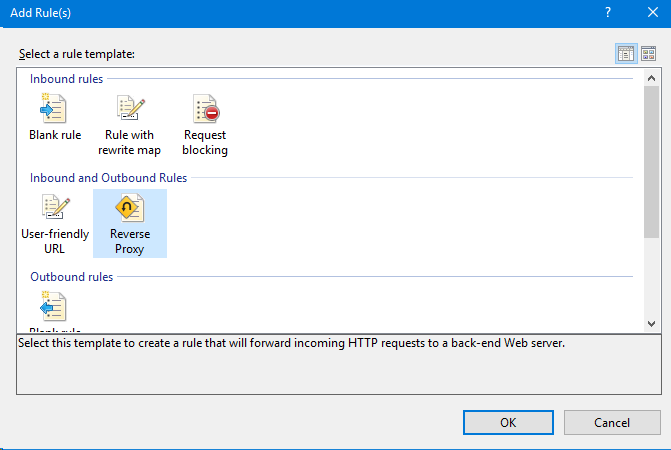

Click on "Add rules" option and add a "Reverse Proxy" one:


4 - Activate Reverse proxy on the ChronoScan settings (please make sure that the directory name match your configuration, in this case /wci):
